Electrical System Diagnostics in San Tan Valley & Greater Phoenix, AZ
Most vehicles should settle below about 50 milliamps of parasitic draw once their modules fall asleep, and a steady draw much higher than that can flatten a battery within days. Shop Buddy Mobile Diagnostics provides electrical system diagnostics in San Tan Valley, AZ and Greater Phoenix, testing batteries, charging systems, grounds, circuits, lighting, and accessories in your shop.
Electrical problems rarely announce where they start. A dead battery might trace back to a module that will not sleep, a flickering light to a corroded ground, and a blown fuse to a wire rubbed through behind a panel. Measurements under real operating conditions, not visual checks alone, are what reveal the actual fault location. Backed by 35+ years in automotive repair and an ASE Master Automobile Technician leading the testing, we follow wiring diagrams and measurements rather than hunches. If we cannot identify the issue, the diagnostic service is not charged. We communicate honestly and arrive when scheduled. Use our contact page to book electrical diagnostics at your shop.
Electrical System Diagnostics
Battery and Charging System Testing
A battery can show good voltage at rest and still collapse under load. We load test the battery, measure alternator output at idle and higher speeds, and check ripple that signals a failing diode, confirming whether the charging system keeps up with demand.
Parasitic Draw Testing
When a battery keeps dying overnight, something is staying awake. We measure the current draw after the vehicle's modules go to sleep, then isolate circuits one at a time until the component or module responsible for the drain is identified.
Voltage Drop and Ground Testing
Corroded grounds or loose terminals can lose enough voltage to starve modules, dim lights, or slow the starter while looking fine to the eye. We measure voltage loss across cables and connections under load to find resistance hiding in the circuit.
Short and Open Circuit Tracing
Blown fuses and dead circuits come from wires rubbing through, pinched harnesses, or connectors that failed internally. We use wiring diagrams and methodical testing to locate the exact point of the short or break instead of guessing or replacing whole harness sections.
Lighting and Accessory Faults
Headlamps, turn signals, power windows, and interior lights all depend on switches, relays, modules, and wiring working together. We test each part of the affected circuit and identify whether the failure sits in a bulb, a switch, a module, or the wiring.
Harness and Connector Inspection

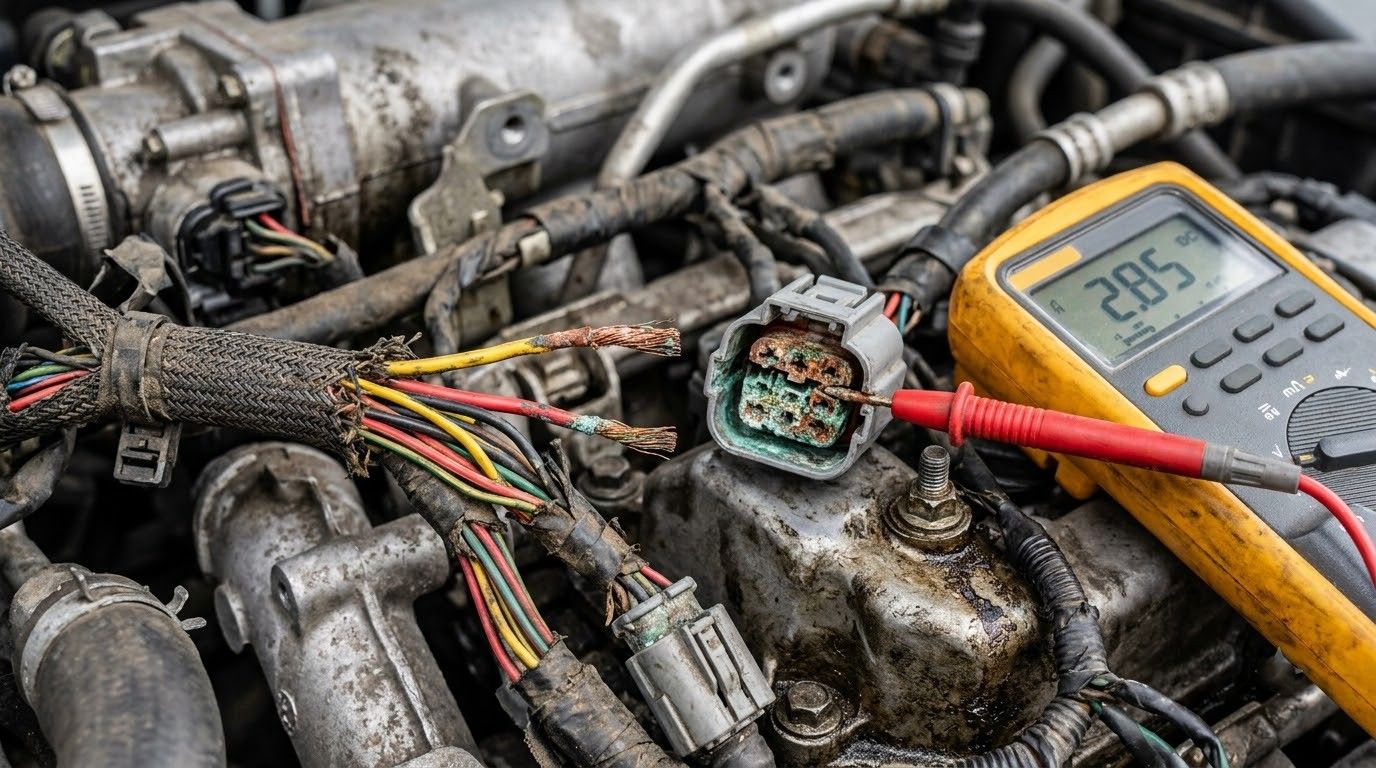

Heat, vibration, and rodents take a toll on wiring over time. We inspect the harness sections tied to your symptom, look for melted insulation, chewed wires, and corroded pins, and confirm connector tension on terminals suspected of losing contact.
Why Choose Us for Electrical System Diagnostics
Measurements Over Hunches
Electrical problems invite guesswork, and guesswork gets expensive fast. We rely on meters, current clamps, and wiring diagrams to prove where the fault is, so each recommendation comes backed by readings you can see and understand for yourself.
Arizona Heat Taken Into Account
Phoenix-area summers bake batteries, wiring insulation, and connectors under the hood. We factor heat into our testing, checking components under the conditions where they actually fail, which catches problems that a quick cool morning inspection would likely miss.
Patience With Intermittent Faults
Faults that come and go are among the hardest to catch. We take the time to recreate conditions, flex harnesses, and monitor circuits while the fault happens, rather than declaring everything fine because it worked for a few minutes.
Module Knowledge Included
Many electrical symptoms trace back to a control module rather than a simple wire. Because we program and diagnose modules too, we can follow the problem into the software and network side when basic circuit testing points that way.
Lighting and Accessory Faults
If we cannot identify the electrical issue, you will not be charged for the diagnostic service. That promise keeps our testing focused and gives you confidence that the whole visit is aimed entirely at finding the real cause.
Testing Right in Your Bay
A vehicle with a dying battery or dead lights is often unsafe to drive anywhere. We come to your shop, which keeps the vehicle safely off the road until the problem is fully understood.
No More Mystery Drains or Dead Circuits
Electrical faults test patience, drain batteries, and leave features working one day and dead the next. Shop Buddy Mobile Diagnostics tracks those problems to their source with measurements, wiring diagrams, and module knowledge, working at auto shops across San Tan Valley, AZ and Greater Phoenix. When we cannot identify the issue, the diagnostic service costs nothing. Share your symptoms and vehicle details through our contact page to arrange a visit.
FAQs - Frequently Asked Questions
What causes a car battery to die overnight?
Common causes include a module that fails to sleep, a light or accessory left powered, an aftermarket device wired incorrectly, or a battery that no longer holds charge. A parasitic draw test separates a failing battery from a hidden current drain.
How long do vehicle modules take to go to sleep?
Timing varies widely, from a few minutes to 45 minutes or longer on some vehicles. Accurate parasitic draw testing waits until the modules have fully shut down, since measuring too early makes a normal vehicle look like it has a drain.
What is a voltage drop test?
It measures how much voltage is lost across a cable, connection, or ground while current flows. Excessive loss reveals hidden resistance from corrosion or loose terminals that a simple continuity check or visual inspection would easily miss entirely.
Why do my fuses keep blowing?
A fuse that blows repeatedly is protecting a circuit from excessive current, usually caused by a wire shorting to ground, a failing motor, or a damaged component. Installing a larger fuse risks melted wiring, so the short must be found first.
Does Arizona heat affect car batteries?
Absolutely. High temperatures speed up internal corrosion and fluid loss inside the battery, which is why heat, not cold, tends to shorten battery life most. A battery weakened by summer often fails on a cool morning later in the year.
What charging voltage is normal for a vehicle?
Most charging systems produce roughly 13.5 to 14.5 volts with the engine running, though some newer vehicles vary output intentionally to save fuel. Readings far outside that range, or large swings, suggest an alternator or voltage regulation problem.
Can aftermarket accessories cause electrical problems?
Yes. Poorly installed remote starters, lighting, stereos, and trackers can create drains, shorts, and module faults. Shop Buddy Mobile Diagnostics traces those installations for San Tan Valley, AZ shops and identifies whether an accessory is behind the problem.
Can you find electrical problems that come and go?
Usually, with enough time and the right testing conditions in place. Shop Buddy Mobile Diagnostics patiently recreates heat, vibration, and load conditions at your shop in San Tan Valley, AZ, monitoring the circuit until the intermittent fault finally shows itself.
